WS2811 RGB LED Breakout Module

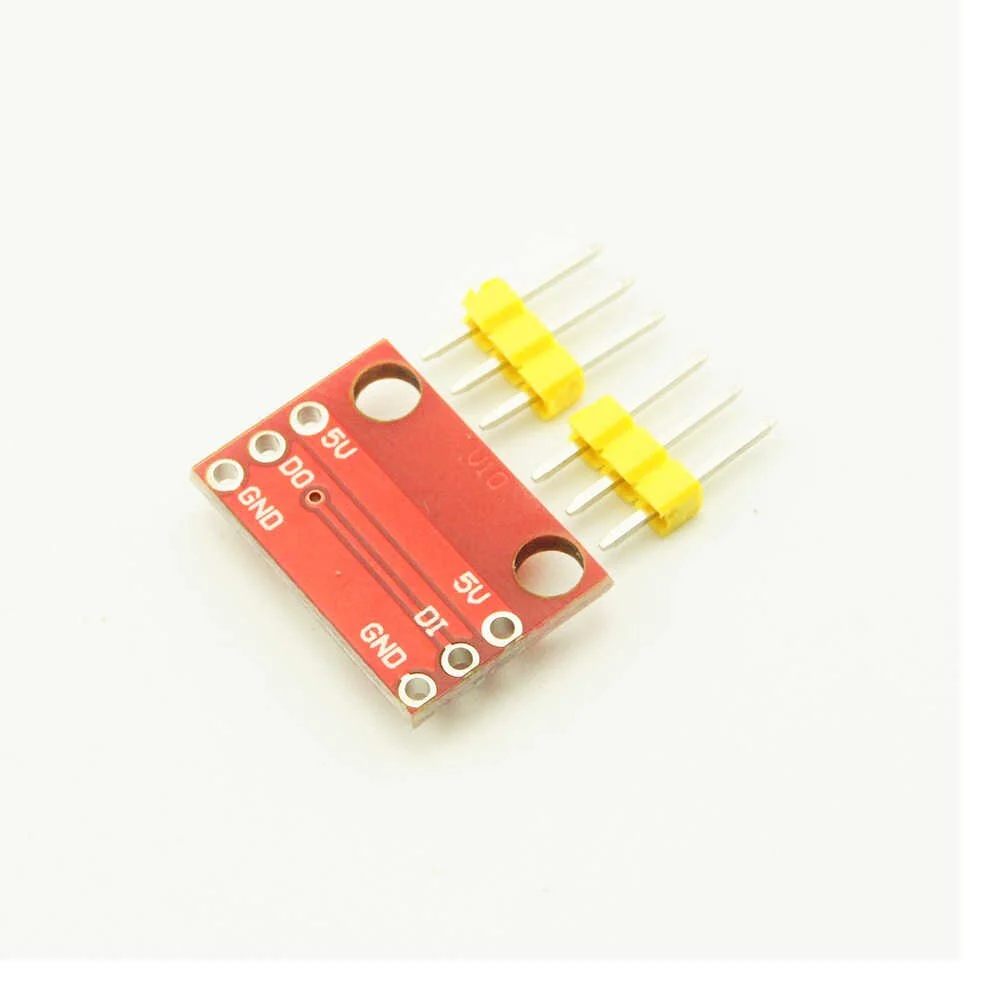

WS2811 RGB LED Breakout Module is actually an RGB LED with a WS2811 built right into the LED! All the necessary pins are broken out to 0.1″ spaced headers for easy bread-boarding. Several of these breakouts can be chained together to form a display or an addressable string.

The LED has been equipped with the integrated driver that allows you to control the color and brightness of the LED independently.

WS2811B is an intelligent LED light source control that the Circuit and RGB chip control are integrated into a 5050 Components package. Its internal data includes intelligent digital door locks and signals remodel loop amplification drive.

Technical Specification:

• Supply Voltage: 5
• Viewing Angle:120°
• Size: 12.5mm*18mm*3mm(L*W*H)

Features:

• Output port compression 12V
• Built in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate
• Built-in electric reset circuit and power lost reset circuit
• Cascading port transmission signal by single line
• Any two point the distance more than 10m transmission signal without any increase circuit
• When the refresh rate is 30fps, low speed model cascade number are not less than 512 points, high speed mode not less than1024 points
• Send data at speeds of up to 400 Kbps and 800 Kbps two patterns

Applications:

• LED decorative lighting
• Indoor/outdoor LED video or irregular screen
